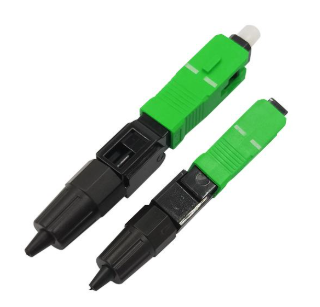

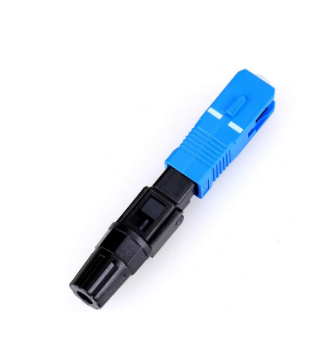

Description The fast connector is an indispensable component in the construction of fiber optic networks, especially with the FTTH network that is gradually dominating the market today. The fast optical connector helps to save the maximum cost for the construction of fiber optic cable, both in terms of time and money, and does not require a highly qualified person to do it. Fast connector SC optical connector is used to connect directly to the fiber without the need to use a welding machine.

Fast connector is researched and manufactured on the most modern technology line, fast optical connector actively and effectively supports engineers in the construction process of FTTx fiber optic cable connection, at a low cost. The cost is very cheap, the implementation time is extremely fast as well as the connection life is quite high and the quality is quite high, so the -fast connetor optical connector is widely used in the construction of optical cables today. The most common types of optical fast connectors are SC connectors – including SC/UPC and SC/APC, in addition to FC or LC standard quick connectors, but less common.

FAST connector is factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber . FAST Connector are compatible with 250μm and 900μm optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. All primary fiber types are supported and each connector′s color per industry standard requirements to aid in identification during and after install action Incorporated into device is an innovation.
