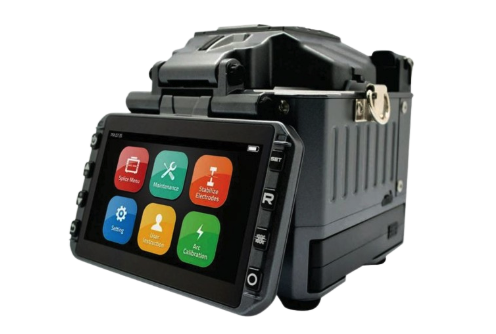

Description The FiberFox Mini 6SI+ Core to Core 6 Motors Set Splicer Machine uses the Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking System) method for splicing. The machine has an average loss of SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB) with a splicing time of 10s average SM / SM 7s Quick mode. It has Factory installed mode: 33, User installable mode: 70+ splicing programs with attenuation range of 0.1dB ~ 20dB (0.1dB step).The fiber types that can be used in this machine are SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable).The average heating time is 15 second and there are 34 (Factory installed mode : 11, User installable mode : 23) heating modes that are available. To detect the fiber, the machine uses 2 CCD camera system with Color 4.3" LCD monitor, with Touch Screen (Tempered Glass) monitor which allows you to see all the functions and features clearly. The battery used here typical 200 Cycles (Splice & Heat) / single battery, 2 Batteries Standard with a power supply ability of AC 100-240V input or DC 9-14V. The max wind speed resistance of this splicer machine is 15m/s.The FiberFox Mini 6SI+ Core to Core 6 Motors Set Splicer Machine has 1 Year Warranty.

Fiber Fox Mini 6SI+ is a splicer machine with a core alignment method. It has a 60dB return loss, 12s average SM/SM 7s quick mode splice time, and 5000 arcs electrode lifespan. It also has a 100-1000um coating diameter, 80-150um cladding diameter, and a typical 14s heating time.

The Mini 6Si+ comes with all the same excellent specification Core Alignment Fusion Splicer but with extra enhancements so that users spends even less time on each termination. This unit is still the same compact size for convenient transportation and storage & comes with a full range of accessories and spares.
