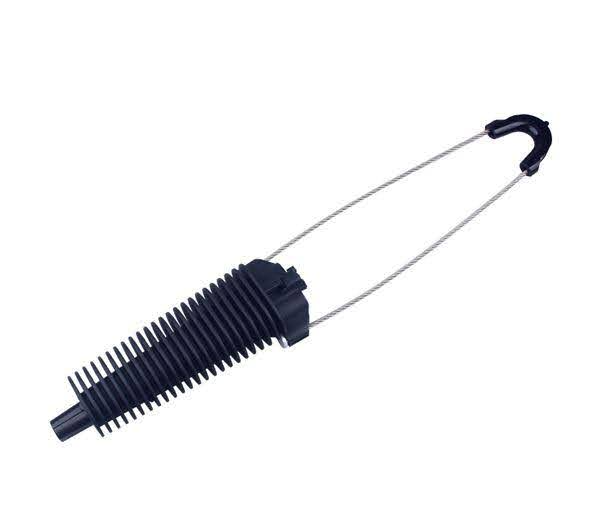

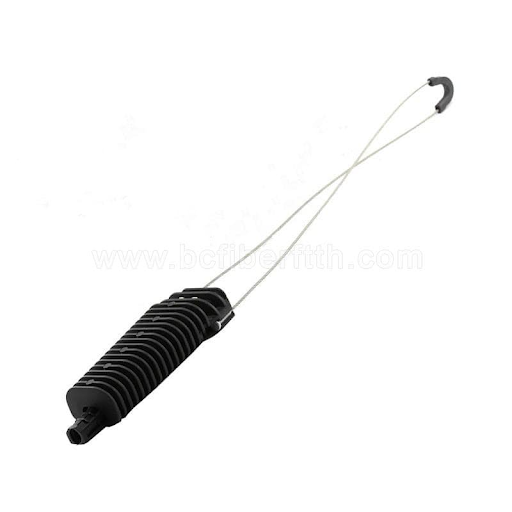

Wedge Tension Clamp

Brand : Technovate Pvt. Ltd.

Model : Indian

Description Optical fiber anchoring clamps, also known as wedge tension clamps, are designed for secure and reliable suspension of optical fiber cables, particularly in overhead installations, featuring high strength, ease of installation, and resistance to environmental factors. A wedge-type tension clamp, also known as an anchoring clamp or dead-end clamp, is a device used to secure and anchor cables in overhead installations, providing tension and preventing damage to the cable or supporting elements. Purpose: These clamps are designed to provide a secure and reliable connection for optical fiber cables, especially in overhead deployments like telecommunication lines. Construction: 1. They typically consist of self-adjusting plastic wedges that clamp the optical cable without causing damage. 2. A stainless steel bail or other mounting mechanism allows for easy installation on pole brackets or hooks. 3. Some clamps are made of nylon or aluminum for increased tension load without cable slip. Function: These clamps are designed to fasten cables, particularly in overhead installations, ensuring they are securely anchored and can withstand tension without damaging the cable or the supporting structure. Mechanism: Wedge-type tension clamps typically consist of a body, wedges, and a loop or bail for attachment to a pole or other supporting structure. The wedges grip the cable, and the loop or bail allows for attachment to the supporting structure. Materials: The clamps are often made of durable materials like plastic or polymer for the body and wedges, and galvanized steel for the loop or bail to ensure weather resistance and longevity. Applications: These clamps are used for various types of cables, including aerial bundle cables, fiber optic cables, and service lines, and are commonly used in utility pole installations and overhead communication lines. Installation: Wedge-type tension clamps are designed for easy and fast installation, often without the need for specialized tools. Advantages: They provide a reliable and efficient way to secure cables, offering high strength, fixation reliability, compactness, and ease of use.

Key Features

High Strength and Durability: These clamps are designed to withstand significant tensile forces and environmental conditions like frost, wind, and extreme temperatures.
Easy Installation: They are designed for quick and simple installation, often without special tools, improving construction efficiency.
Cable Protection: The wedge design distributes stress evenly across the cable sheath, preventing damage or breakage, even under heavy loads.
Corrosion Resistance: Made from materials like UV-resistant plastic, aluminum, stainless steel, and galvanized steel, they offer excellent resistance to corrosion and weathering.
Versatile Application: They can be used for various types of optical fiber cables, including ADSS (All Dielectric Self-Supporting) cables and other self-supporting cables.
Compact Design: Their compact design allows for easy handling and installation, even in tight spaces.
Modular Design: Some models feature a modular design, allowing for easy handling, compactness, and lightweight construction.
Variety of Materials: Clamps can be made from various materials, including UV-resistant plastic, aluminum, stainless steel, and galvanized steel, to suit different environmental conditions.
Secure Clamping: The wedges clamp the cable firmly without damaging the insulation, ensuring a reliable and secure connection.
Flexible Mounting: They can be mounted on various types of hardware, including brackets, hooks, and traverses, providing flexibility in installation.
No Damage to Cable: The design ensures that the cable is not damaged during installation or under load, even in extreme conditions.
Simple Assembly: The wedges open by pulling them back, making assembly easy.
Different Sizes and Materials: Available in various sizes and materials to meet specific cable diameter and environmental requirements.

Types

ADSS Tension Clamp: Specifically designed for ADSS (Aerial Dropped Strand System) cables, which are common in overhead fiber optic deployments.
Wedge Type Tension Clamp: A general term for clamps that use wedges to grip the cable.
Dead-End Clamp: Another term for an anchoring clamp, indicating its role in terminating or anchoring the cable.

Applications

Power Lines: Securing cables between residential buildings and industrial complexes.
Telecommunication Lines: Anchoring cables for telecommunications infrastructure.
ADSS Fiber Optic Cables: Securing ADSS cables in overhead installations.
